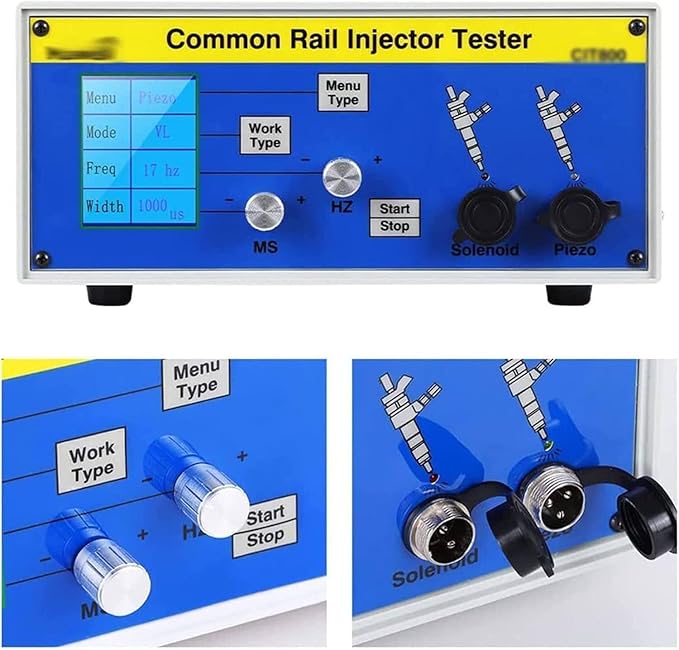

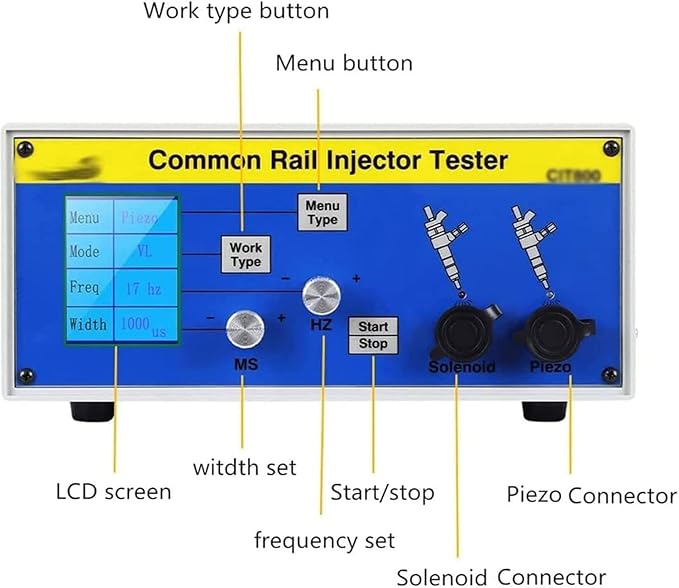

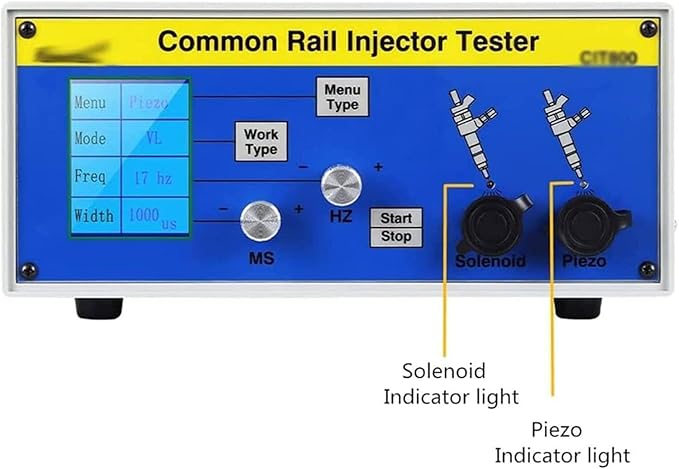

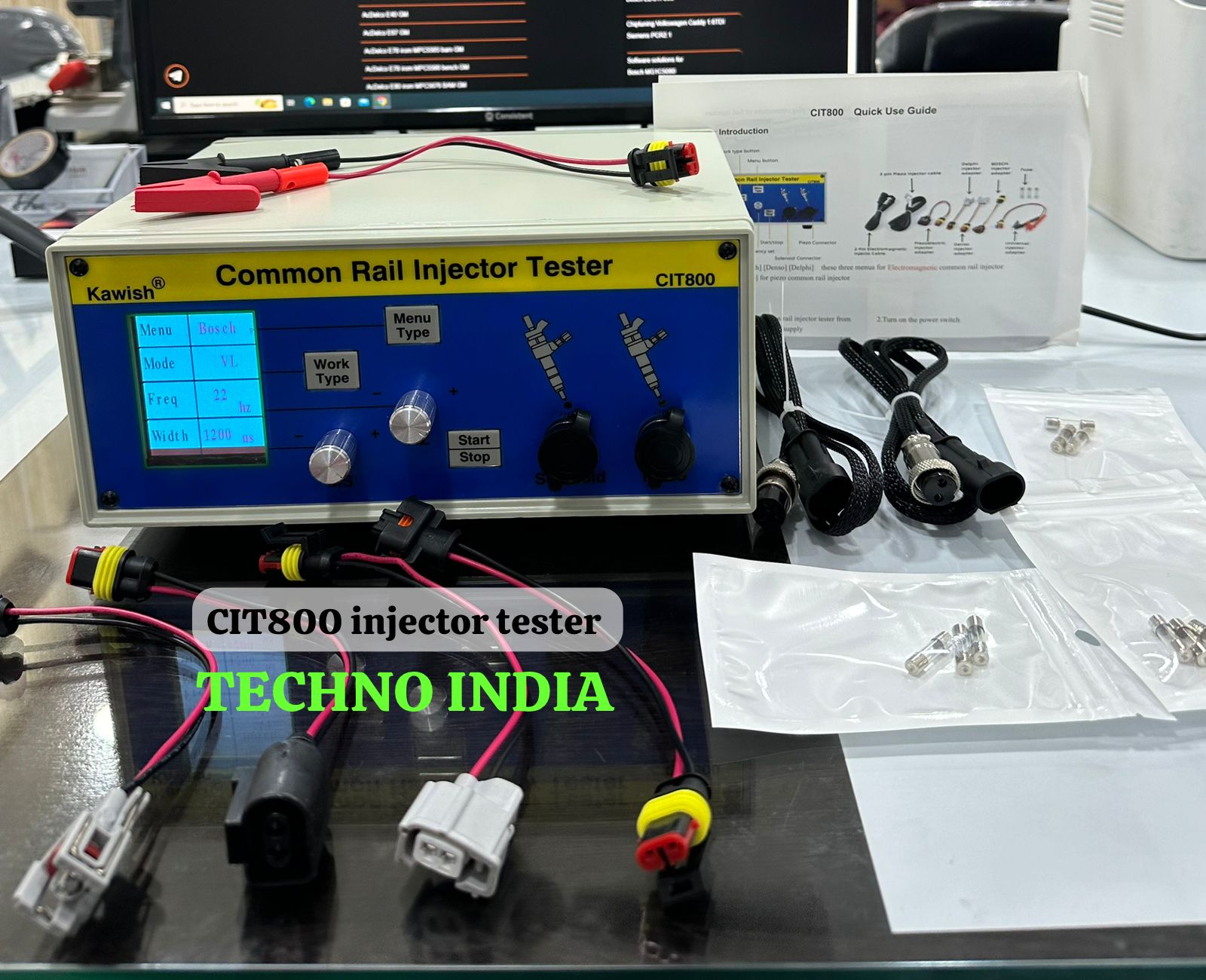

CIT 800 Injector Tester

₹ 17000.00

CIT 800 is a multifunction diesel common rail injector tester designed to test solenoid and piezo injectors by simulating ECU signals and checking injector performance.

Quantity

Whatsapp
  • Description
  • Diagnostics
  • Packing List
  • Parameters
  • Special Function
  • Video

CIT 800 Injector Tester is a compact and professional tool used for testing diesel injectors. It simulates ECU signals to evaluate injector working conditions such as idle, full load, and pilot injection.


It supports both solenoid and piezo injectors, making it suitable for modern CRDI engines. The device is portable, easy to operate, and ideal for workshops and field testing where a full injector test bench is not available.

  • BOSCH
  • DENSO
  • DELPHI
  • SIEMENS
  • CUMMINS
  • CRDI SYSTEM (ALL DIESEL COMMON RAIL VEHICLES)

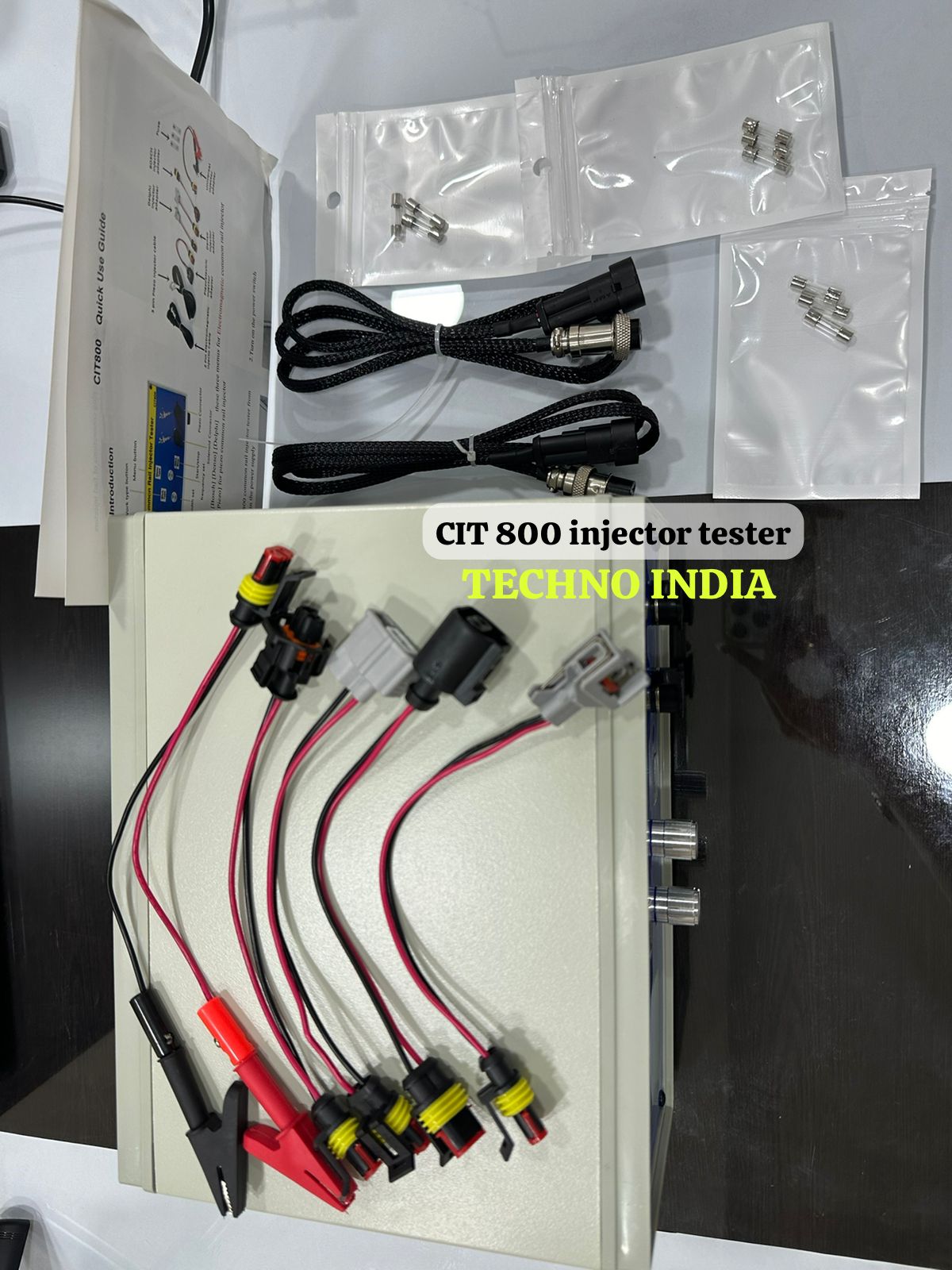

  • CIT 800 Main Unit
  • Power Cable
  • Injector Test Cables
  • Piezo Connectors
  • Clip Connectors
  • Fuse Set
  • User Manual
  • Working Voltage: AC 110V – 220V
  • Power: ~50W
  • Frequency Range:
    • Solenoid: 1–30 Hz
    • Piezo: 1–20 Hz
  • Pulse Width: 100 µs – 6 ms
  • Injector Channels:
    • 4 (Solenoid)
    • 2 (Piezo)
  • Control Type: Microprocessor-controlled
  • Size: Approx. 110 × 260 × 200 mm
  • Weight: Approx. 2.5 – 7 kg
  • ECU signal simulation
  • Solenoid injector testing
  • Piezo injector testing
  • Multi-injector testing (up to 4 injectors)
  • Spray pattern testing
  • Leakage testing
  • Idle / full load / pilot injection testing
  • Injector impedance testing
